FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia

FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia
FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia
Basic Information
Place of Origin: China
Brand Name: OEM/ODM
Certification: RoHS
Minimum Order Quantity: 10 pcs
Price: sales@sogootech.com
Packaging Details: PP bag+ paper carton
Delivery Time: 3-20 days depends on quantity
Payment Terms: Paypal,T/T, Western union
Supply Ability: 100000 pcs per week
Contact Now
Product Name: FUFDG MM OD Fiber LC OD-LC OD Dual 60m MM OM2 Flexible Ended For Nokia Key Words: 60 FUFDD MM OD Fiber
Application: Nokia RFM/RRH Connector: LC OD-LC OD
Boot Type: Uni Boot / NSN Length: 60m NSN Boot Fiber Optical Jumper
Highlight:

FUFDG MM OD fiber

,

OD-LC OD dual 60m fiber cable

,

Nokia OD-LC OD 60m fiber patch cord

FUFDG MM OD Fiber LC OD-LC OD Dual 60m MM OM2 Flexible Ended For Nokia

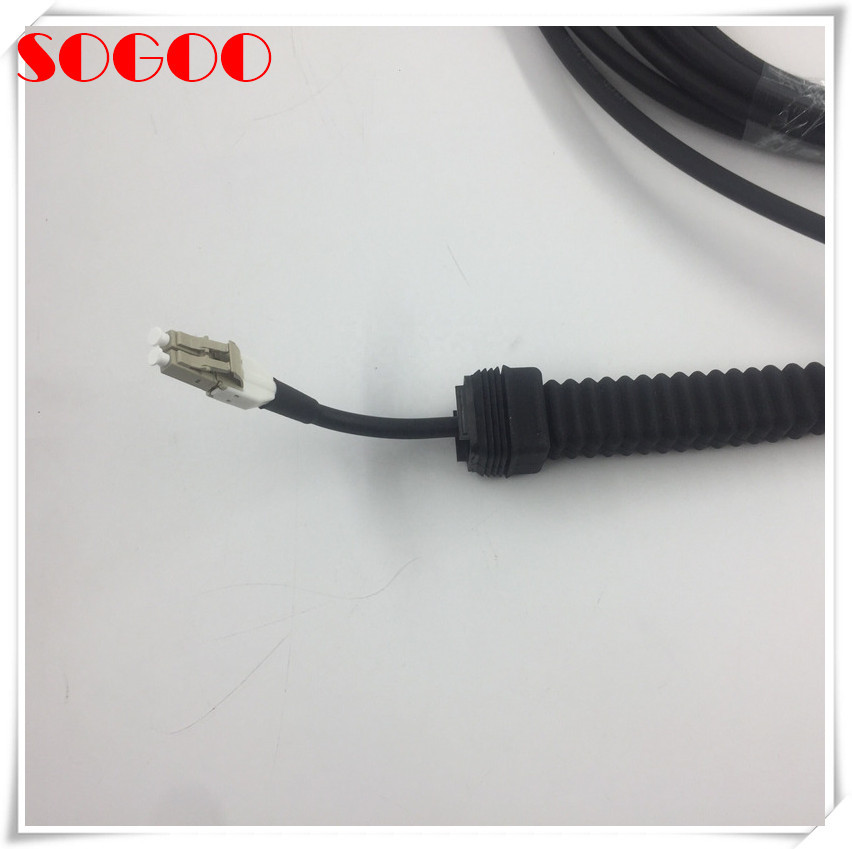

FUFDG MM OD Fiber LC OD-LC OD is 60m, used in RFM/RRH applications, the optical cable is OM2, flexible ended Uni boot NSN, compatible with Nokia . At both sides, LC duplex connectors adopt with flexible tube, it can be bended to any degree between -100° to +100°,and protected by IP seal boot.



Application

  1. Multi-purpose Outdoor.
  2. For connection between distribution box and RRH. 3.Deployment in Remote Radio Head cell tower applications.



Features

1.Easily add/install jumper cables for a future expansion.

2.Low insertion loss and added loss.

3.Height of attenuation.

4.Flexibility with small bending radius and excellent cable routing properties.

5.End-face geometry and quality superior than IEC and Telcordia standards.

6.The material in the jumper cable are all-weather and UV-resistant.

7.IP67 water and dust protection.

8.Mechanical performance: IEC 61754-20 standard.

9.RoHS and REACH materials compliant.



Connector Types



Type Reference Note



LC



IEC 61754-20



Single mode duplex

 UPC: Blue connectors
Multimode duplex UPC: Grey Connectors



Dimensional Diagrams



  1. NSN boot 180°dulex LC Fiber Optic Jumper



End1 FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia 0End2

  1. NSN boot 90°dulex LC Fiber Optic Jumper





End1 FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia 1End2



3. Flexible LC OD - LC OD Fiber Optic Jumper

FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia 2​







Patch cord versions



Jumper tolerance requirement
Overall length (L) (M) length of tolerance(CM)
0＜L≤20 +10/-0
20＜L≤40 +15/-0
L＞40 +0.5%L/-0



Cable Structure- No Armoureed

FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia 3












Cable Count



Out sheath Diameter

(MM)





Weight

(KG)

Minimum allowable Tensile Strength

(N)

minimum allowable Crush Load

(N/100mm)

Minimum Bending Radius

(MM)



Storage temperature

(℃)
short term long term short term long term short term long term
2 5.0±0.2 30 800 400 2000 1000 20D 10D -20 ~~ +70







Cable Parameters- Amoured

FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia 4







Cable Count



Out sheath Diameter

(MM)





Weight

(KG)

Minimum allowable Tensile Strength

(N)

minimum allowable Crush Load

(N/100mm)

Minimum Bending Radius

(MM)



Storage temperature

(℃)
short term long term short term long term short term long term
2 5.0±0.2 45 400 800 2000 3000 20D 10D -20~~+70




FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia 5



Related NSN uni-boot Outdoor optical fiber jumper cable



Name

Product code

Length

Cable label

Usage

Notes

FUFAS MM OD fiber LC
OD-LC OD dual 2 m

473288A

2 m (6.6 ft)

995741

OM2 - RFM/RRH

MM, LC dual OD IP-LC OD IP
dual, HF,OM2
Flexible ended

FUFAR MM OD fiber LC
OD-LC OD dual 5 m

473287A

5 m (16.4 ft)

995740

FUFBC MM OD fiber LC
OD-LC OD dual 10 m

473305A

10 m (32.8 ft)

995758

FUFBA MM OD fiber LC
OD-LC OD dual 30 m

473303A

30 m (98.4 ft)

995756

FUFBB MM OD fiber LC
OD-LC OD dual 50 m

473304A

50 m (164 ft)

995757

FUFAY MM OD fiber LC
OD-LC OD dual 100 m

473302A

100 m (328.1 ft)

995755

FUFBD MM OD fiber LC
OD-LC OD dual 200 m

473306A

200 m (656.2 ft)

995759

FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia 6



Recommend Products

FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia 7

FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia 8

Packaging and Shipment

FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia 9

Contact us

FUFDG MM OD fiber LC OD-LC OD dual 60m MM OM2 Flexible Ended For Nokia 10






Look forward to your inquiry on our FUFDG MM OD Fiber LC OD-LC OD Dual 60m MM OM2 Flexible Ended For Nokia .
