| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | SOGOO |
| Certification: | CE, RoHS |
| Minimum Order Quantity: | 10 pcs |
| Price: | sales@sogootech.com |
| Packaging Details: | Cartons |
| Delivery Time: | 3-20 days depends on quantity |
| Payment Terms: | T/T; Paypal; Western Union |
| Supply Ability: | 100000 pcs per week |
| Product Name: | FUFAY MM LC OD-LC OD OD Fiber Cable With NSN Boot | Key Words: | FUFAY Fiber Cable With NSN Uni Boot |
|---|---|---|---|
| Length: | 100m | Connector: | LC With NSN Boot |
| Fiber Mode: | MM | Application: | FTTA, Nokia RRU Station |
| Highlight: | FUFAY MM OD fiber cable,100m LC OD-LC OD fiber cable,100mNSN uni boot fiber patch cord |
||

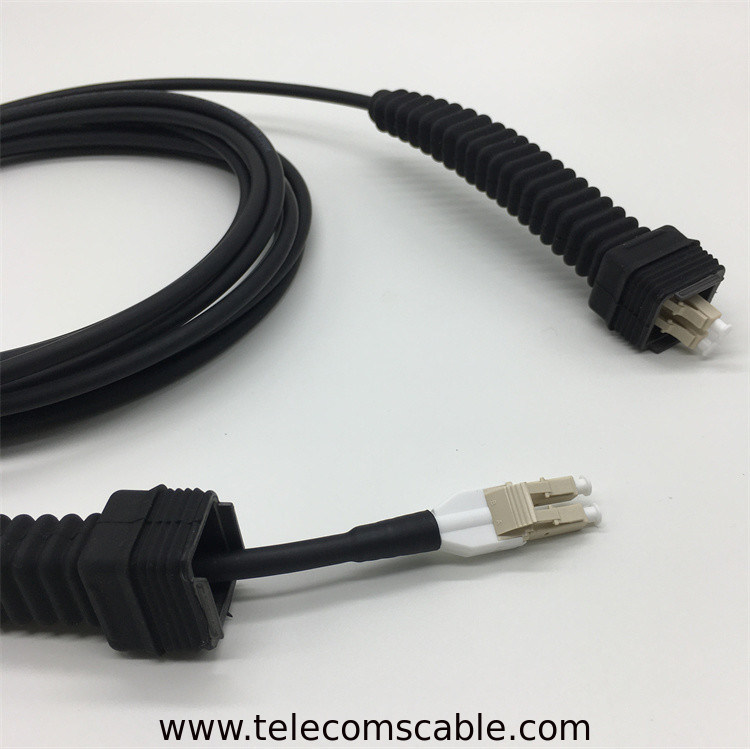

This fiber optical cable assembly is used in FTTA applications, the optical cable has steel armoured structure and has rodent resistance function. At both sides, LC duplex connectors adopt with flexible tube, it can be bended to any degree between -100° to +100°,and protected by IP seal boot.
Application
Features
1.Easily add/install jumper cables for a future expansion.
2.Low insertion loss and added loss.
3.Height of attenuation.
4.Flexibility with small bending radius and excellent cable routing properties.
5.End-face geometry and quality superior than IEC and Telcordia standards.
6.The material in the jumper cable are all-weather and UV-resistant.
7.IP67 water and dust protection.
8.Mechanical performance: IEC 61754-20 standard.
9.RoHS and REACH materials compliant.
Connector Types
| Type | Reference | Note | |
|
LC |
IEC 61754-20 |
Single mode duplex |
UPC: Blue connectors |
| Multimode duplex | UPC: Grey Connectors | ||
Dimensional Diagrams
NSN boot 180°dulex LC Fiber Optic Jumper
End1
End2
NSN boot 90°dulex LC Fiber Optic Jumper
End1 End2
3. Flexible LC OD - LC OD Fiber Optic Jumper
Patch cord versions
| Jumper tolerance requirement | |
| Overall length (L) (M) | length of tolerance(CM) |
| 0＜L≤20 | +10/-0 |
| 20＜L≤40 | +15/-0 |
| L＞40 | +0.5%L/-0 |
Cable Structure- No Armoureed
|
Cable Count |
Out sheath Diameter (MM) |
Weight (KG) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature (℃) |
|||
| short term | long term | short term | long term | short term | long term | ||||
| 2 | 5.0±0.2 | 30 | 800 | 400 | 2000 | 1000 | 20D | 10D | -20 ~~ +70 |
Cable Parameters- Amoured
|
Cable Count |
Out sheath Diameter (MM) |
Weight (KG) |
Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature (℃) |
|||
| short term | long term | short term | long term | short term | long term | ||||
| 2 | 5.0±0.2 | 45 | 400 | 800 | 2000 | 3000 | 20D | 10D | -20~~+70 |
Related NSN uni-boot Outdoor optical fiber jumper cable
Recommend Products
Look forward to your inquiry on our FUFAY MM OD fiber cable with NSN boot, LC OD-LC OD dual 100m, Dia of 5.0mm.
