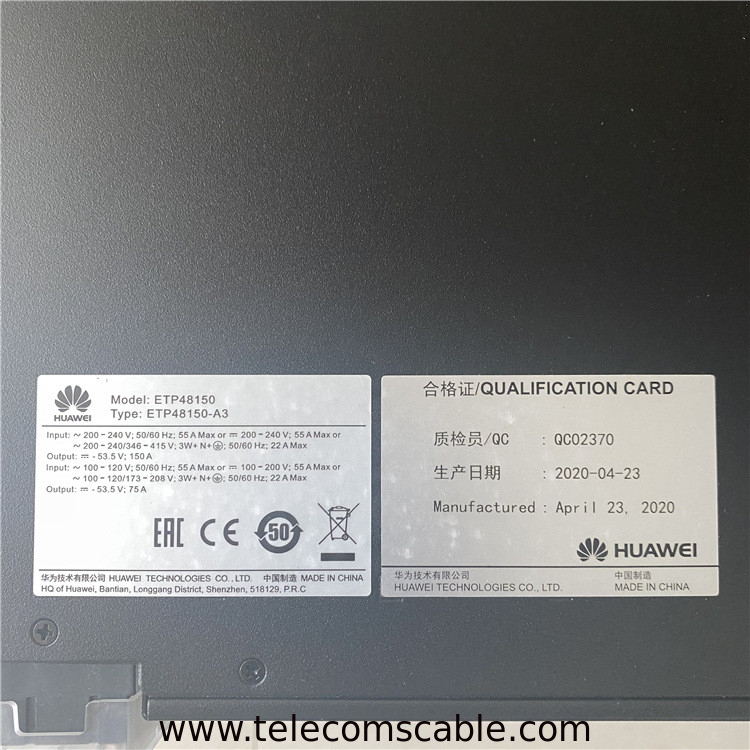

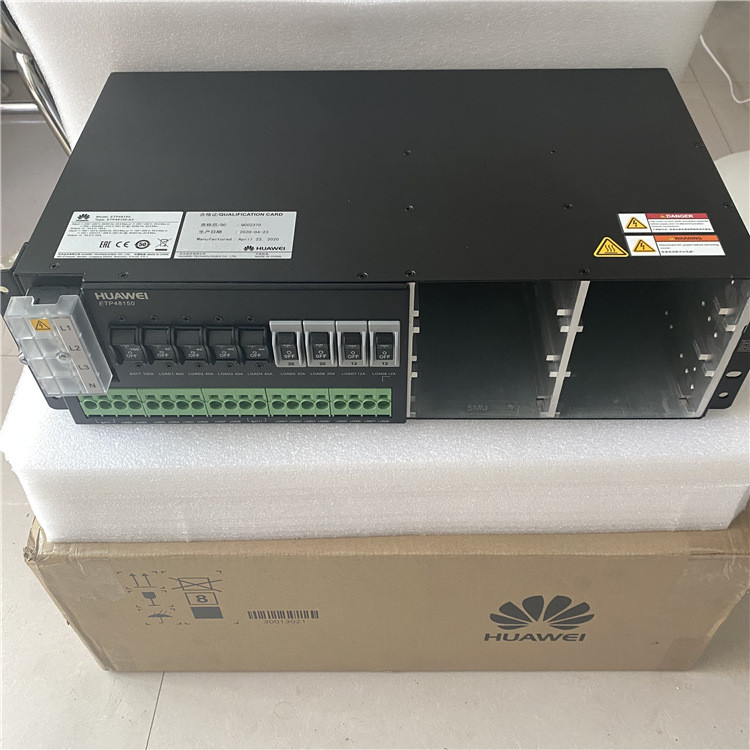

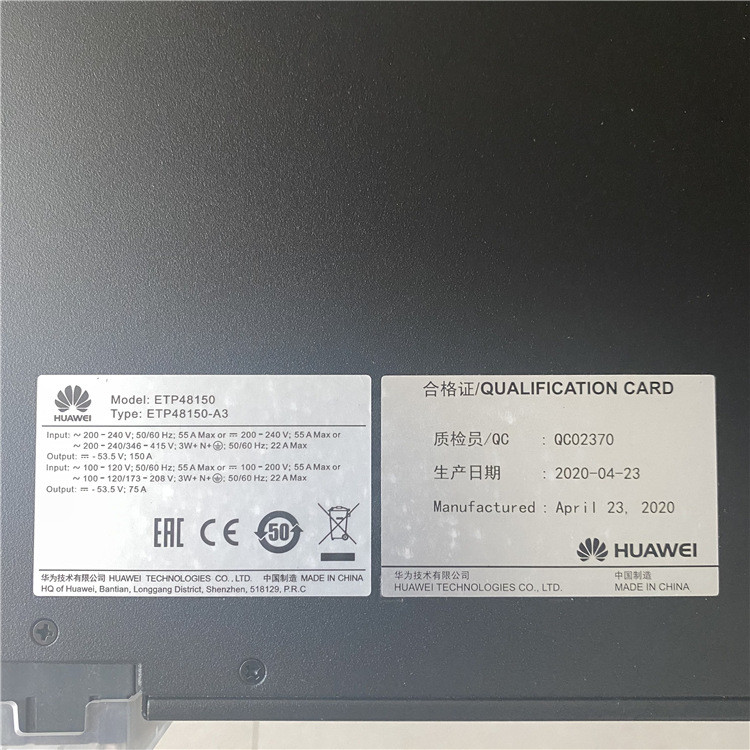

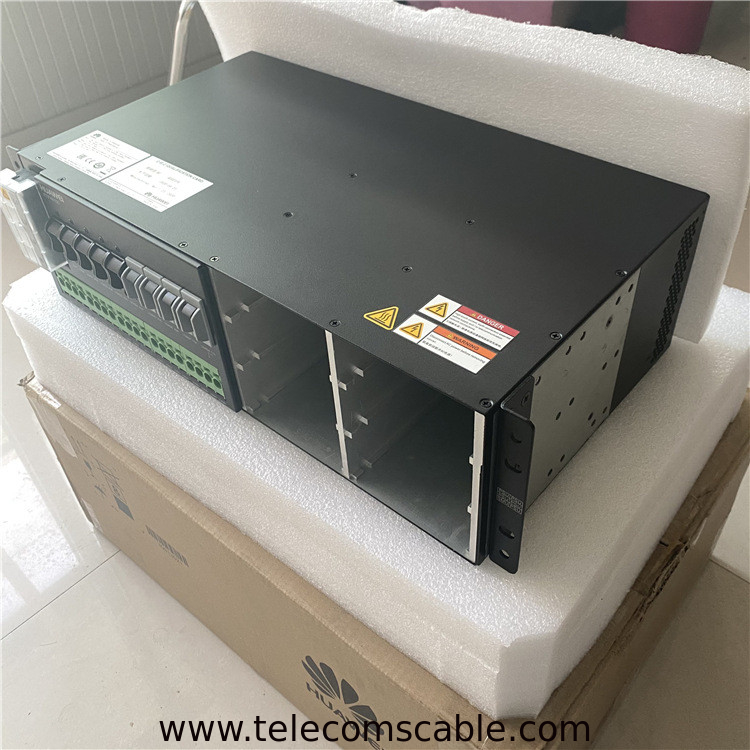

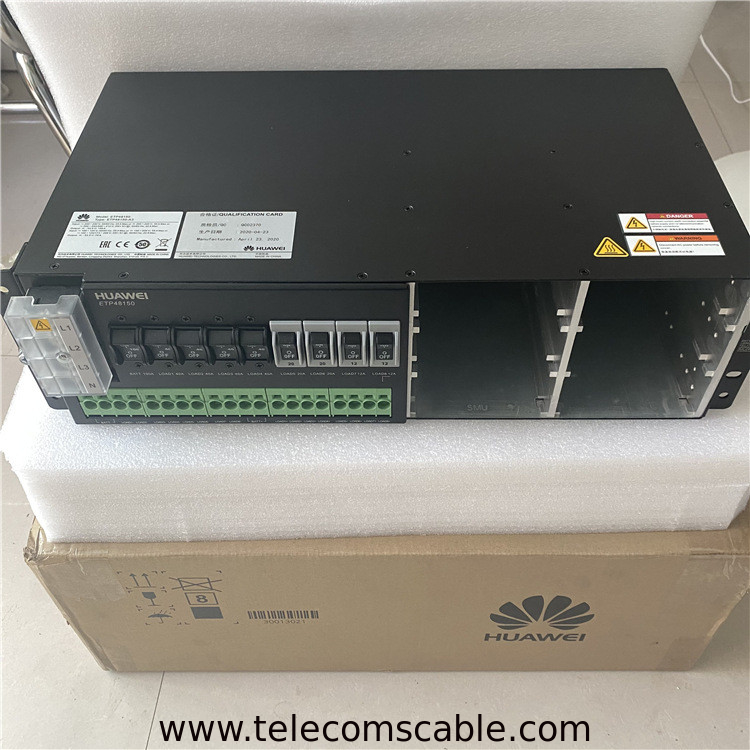

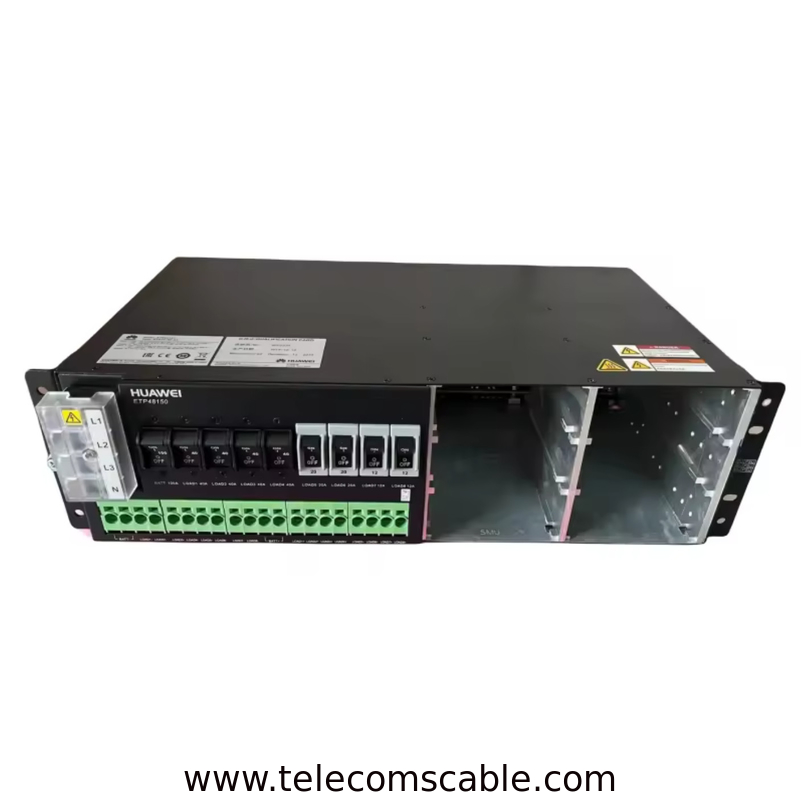

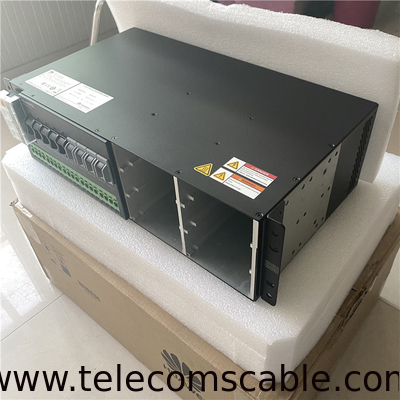

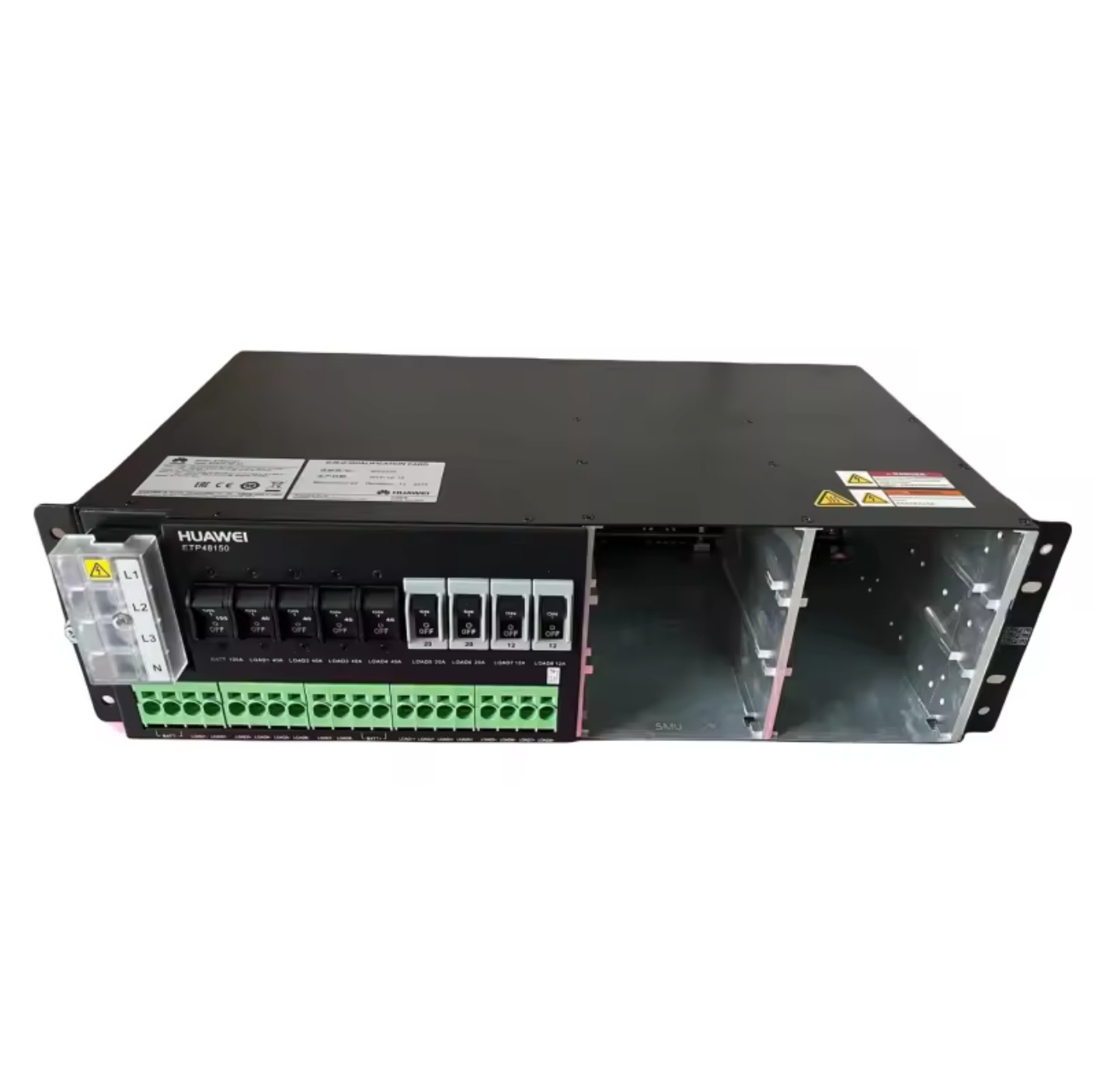

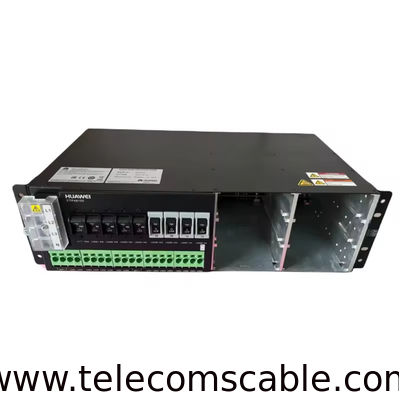

Huawei ETP48150 A3 48V150A Embedded DC Power Supply For Telecom Application
The ETP48150-A3 is a box-type power system that supplies power for -48 V DC communications equipment. It uses 15 A or 30 A rectifiers and provides a maximum output current of 150 A.
The ETP48150-A3 has the following features:
- Supports a wide voltage range of 85 V AC to 300 V AC.
- Provides comprehensive battery management.
- The SMU01A communicates with Huawei Network Ecosystem (NetEco) and third-party element management systems (EMSs) over various security protocols, such as the access network master/slave protocol, YDN protocol, and Simple Network Management Protocol (SNMP), featuring flexible networking. It implements remote unattended management.
- The SMU01B supports access network master/slave protocols, which allows Huawei access network communications equipment to connect to the U2000.
- The SMU01C connects to the power and environment over YDN protocol and access network host over master/slave protocols.
- Displays information on a liquid crystal display (LCD) and provides buttons for operations.
- Supports electronic labels.
- Rectifiers and the site monitoring unit (SMU) are hot-swappable.
- Allows high-efficiency and standard-efficiency rectifiers with the same capacity to coexist.
- The rectifier power factor is 0.99.
ETP48150-A3 configuration
|
Item
|
Configuration
|
| PDU |
AC input |
220 V AC single-phase (default mode)
110 V AC Dual-live wire
220/380 V AC three-phase, four-wire
|
| DC power distribution |
Battery circuit breaker |
One 1-pole 100 A circuit breaker |
| Load circuit breaker |
Four 1-pole 40 A circuit breakers, two 1-pole 20 A circuit breakers, and two 1-pole 12 A circuit breakers |
| SMU |
The following SMUs are supported:
- One SMU01A
- One SMU01B
- One SMU01C
|

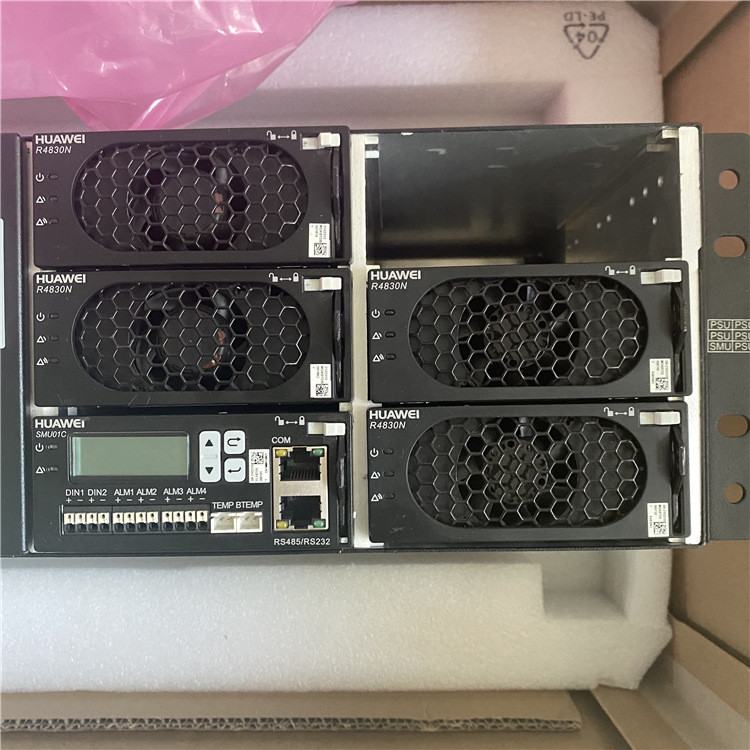

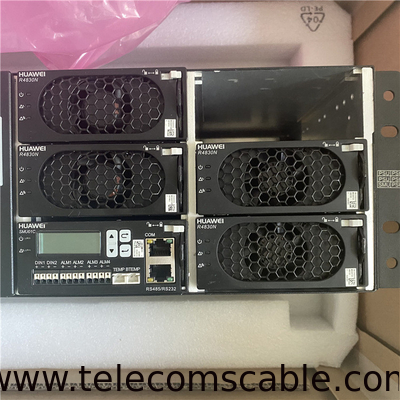

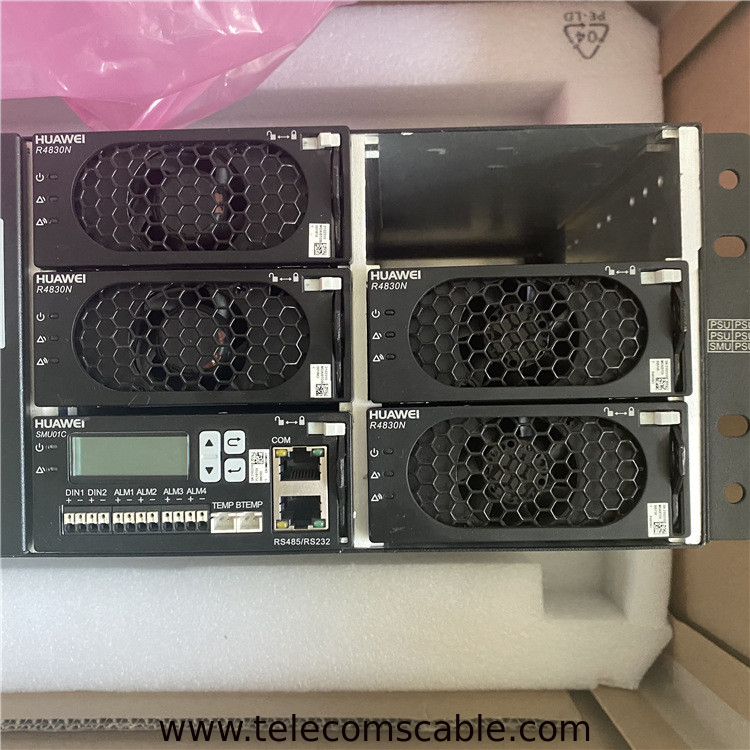

| Rectifier |
The following rectifiers are supported:
- Two to five R4830G1s
- Two to five R4830N2s
- Two to five R4815G1s
- Two to five R4815N1s
NOTE:
- The R4830G1 and R4830N2 can be installed together.
- The R4815G1 and R4815N1 can be installed together.
|
Lead time:
We have a lot of stock, but we cannot guarantee that the product will still be in stock when you place your order. Therefore, please check with our sales team before placing your order. If the product is in stock, we can send it as soon as possible after receiving payment. If the quantity is large, our sales team will also advise you on the lead time.
Trade terms:
EXW / CIF / DDU / DDP.
We do not advise using FOB since it is handled by your forwarder and we do not know their charge standard.
Payment terms:
100% T/T, Paypal, Western Union.
Payment currency:
USD/CNY.
Transporting:
If the quantity is small, we usually send it by courier (DHL, FEDEX, TNT and so on) or by air. If the quantity is large, we advise shipping by sea or by truck (to Vietnam, Laos, Malaysia, Mongolia, Russia, etc.) or by train (European countries). This will take longer time but cheaper fees. Shenzhen Port is the nearest port.
FAQ
1. Why choose us?
A: We are a professional supplier of Huawei, Emerson and ZTE power supply modules, embedded power systems and rectifier modules with original packaging and technical service to provide competitive pricing and fast delivery. We have exported our products all over the world. Contact our sales team and they will give you some clients' PO for reference. We can also give you some chat history to show our service. We take pictures for you before we ship them out and provide full tracking information.
2. How about the quality?
A: What we offer is new and original Huawei/ZTE/Emerson power supply which is of high quality. If there are no new items in the market, we will let you know; if you can accept second-hand power supply, we will source it for you.
3. Could I buy 1pc sample first and small order?
A: Of course! We support sample orders and small orders especially for new customers under certain conditions. If the trial order is OK, you can buy more in the next order. We can offer very competitive prices if the quantity is big. We can pack products according to customer's requirements. If the quantity is big, we will pack them on pallets since most of our clients buy a lot so most of our products are shipped by pallets. If the quantity is small such as just rectifier, it is advised to be shipped by cartons to save freight. But don't worry! Their packages are Huawei/ZTE/Emerson original packages which are well protected by foam and cartons.
4. Could you help us for full range power supply?
A: Yes! If some items are not in stock, we will check with our friend company for you then collect them all and ship them together for you.
