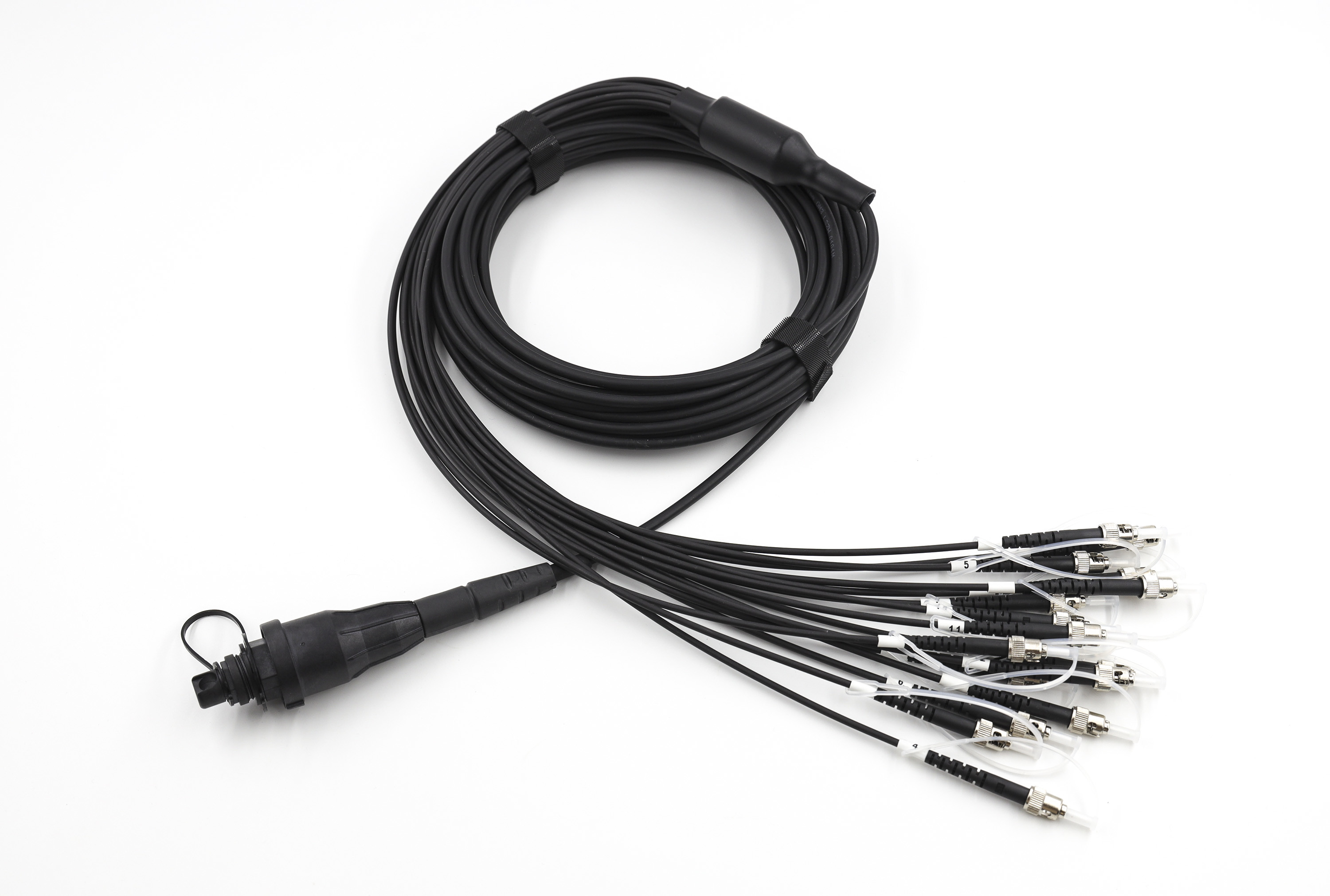

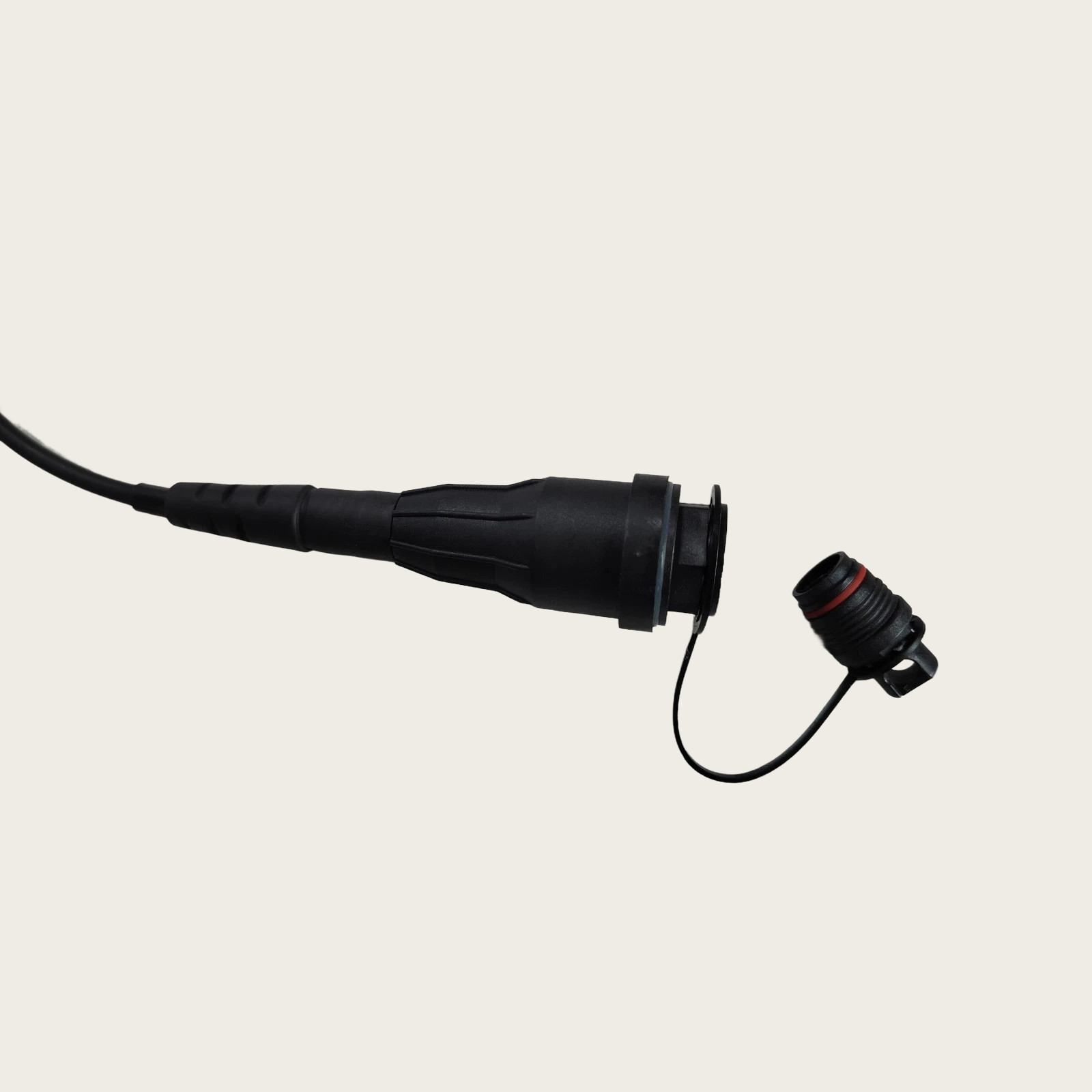

Waterproof MPO Trunk Cable with MPO Breakout Fiber Optic Cable 12/24 Core

Waterproof MPO Trunk Cable with MPO Breakout Fiber Optic Cable 12/24 Core

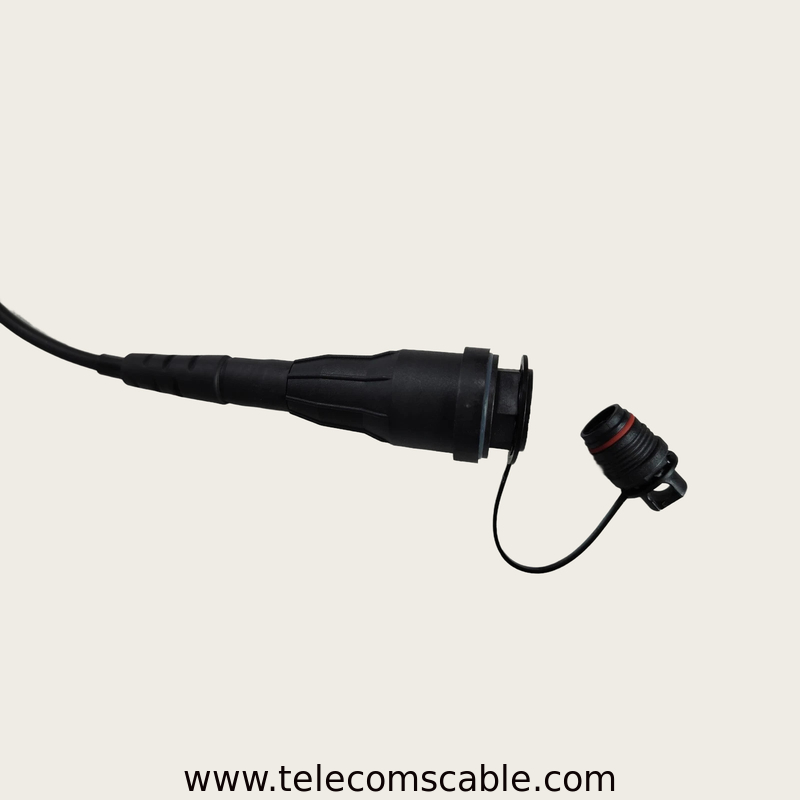

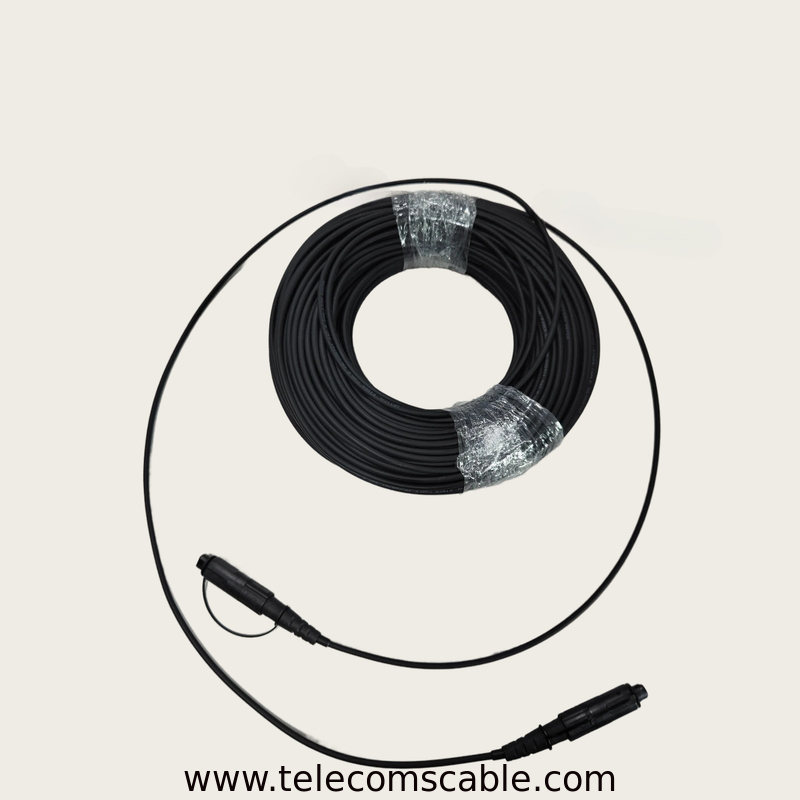

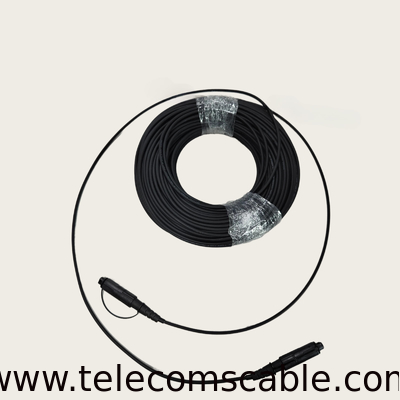

Waterproof MPO Trunk Cable with MPO Breakout Fiber Optic Cable 12/24 Core Waterproof MPO Trunk Cable with MPO Breakout Fiber Optic Cable 12/24 Core Waterproof MPO Trunk Cable with MPO Breakout Fiber Optic Cable 12/24 Core Waterproof MPO Trunk Cable with MPO Breakout Fiber Optic Cable 12/24 Core Waterproof MPO Trunk Cable with MPO Breakout Fiber Optic Cable 12/24 Core
Basic Information
Place of Origin: China
Brand Name: Huawei
Certification: UL, RoHS
Model Number: Waterproof MPO Trunk Cable
Minimum Order Quantity: 10 pcs
Price: sales@sogootelecom.com
Packaging Details: Carton
Delivery Time: 5-8 working days.
Payment Terms: T/T
Supply Ability: 1000pcs
Contact Now
Product Name: Waterproof MPO Trunk Cable With MPO Breakout Fiber Optic Cable 12/24 Core Key Words: Waterproof MPO Trunk Cable
Connector: MPO To MPO Application: Outdoor IP67 Use
Highlight:

Waterproof MPO Trunk Cable

,

MPO Trunk Cable

,

MPO TO MPO Trunk Cable

Waterproof MPO Trunk Cable with MPO Breakout Fiber Optic Cable 12/24 Core

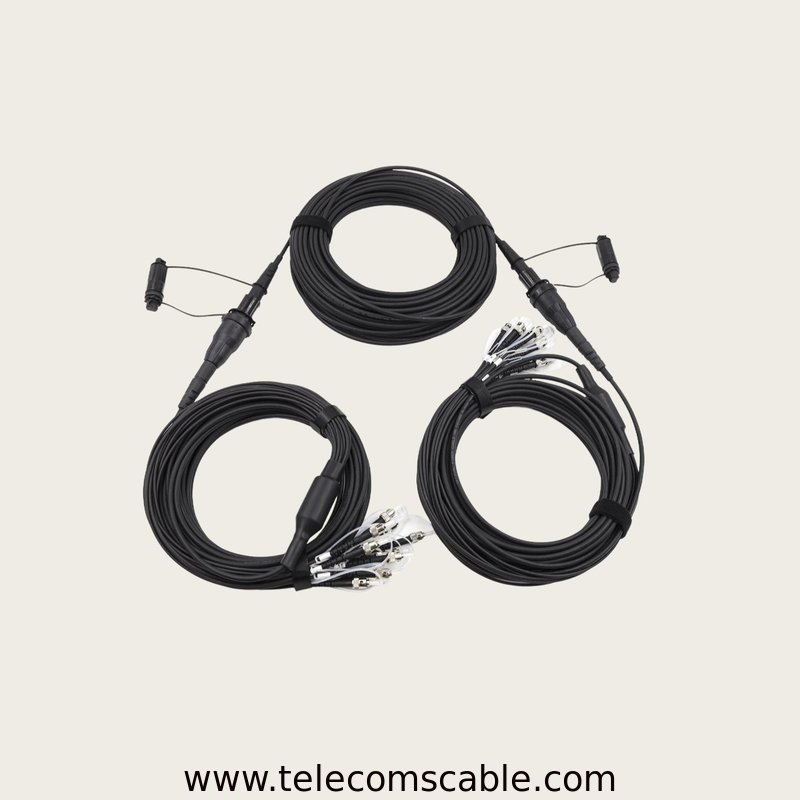

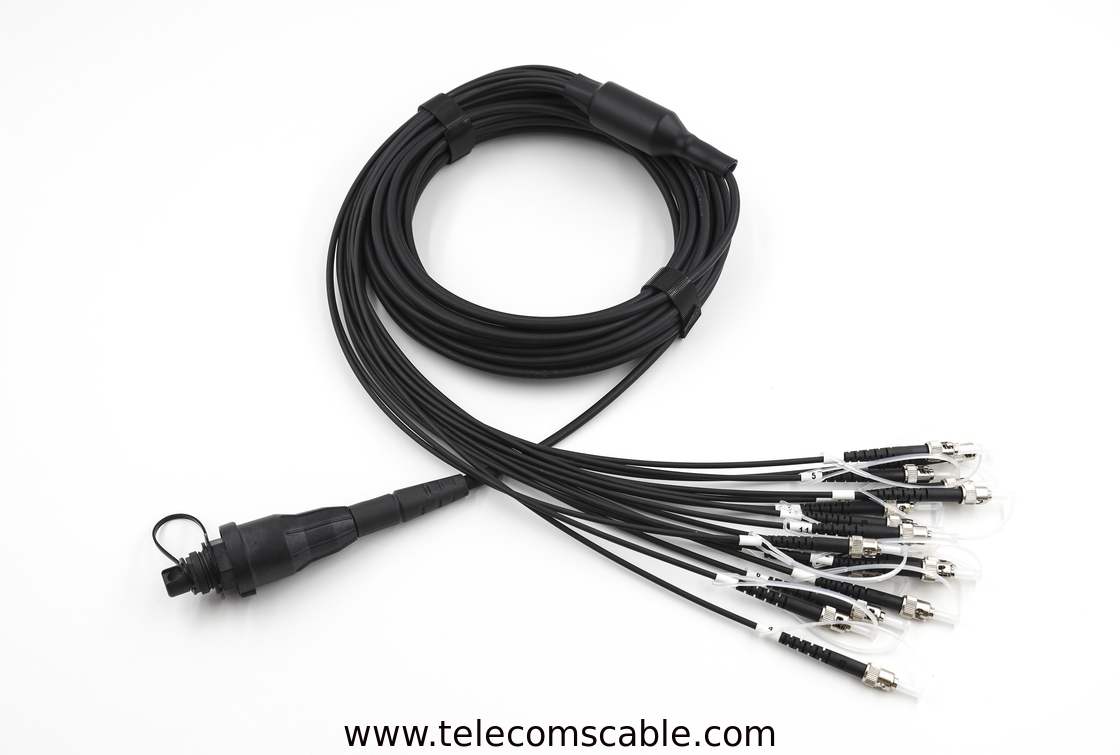

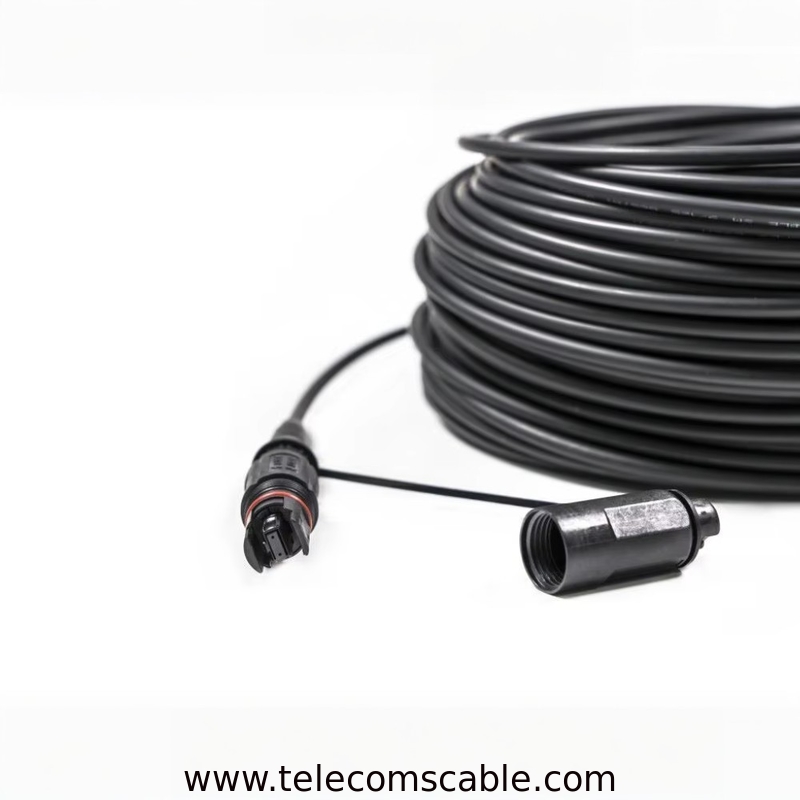

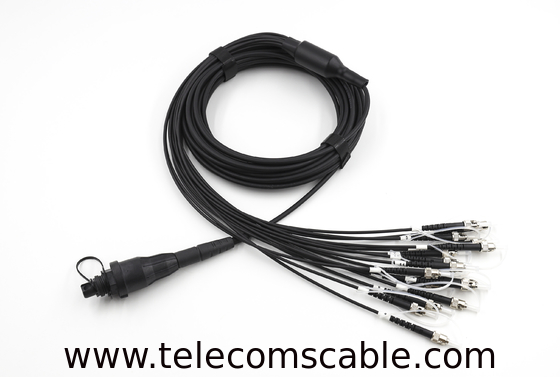

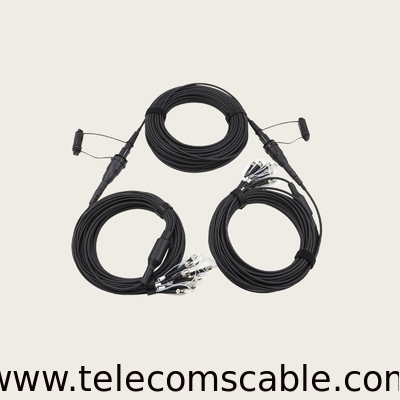

Waterproof MPO Trunk Cable with MPO Breakout Fiber Optic Cable 12/24 Core 0Waterproof MPO Trunk Cable with MPO Breakout Fiber Optic Cable 12/24 Core 1Waterproof MPO Trunk Cable with MPO Breakout Fiber Optic Cable 12/24 Core 2

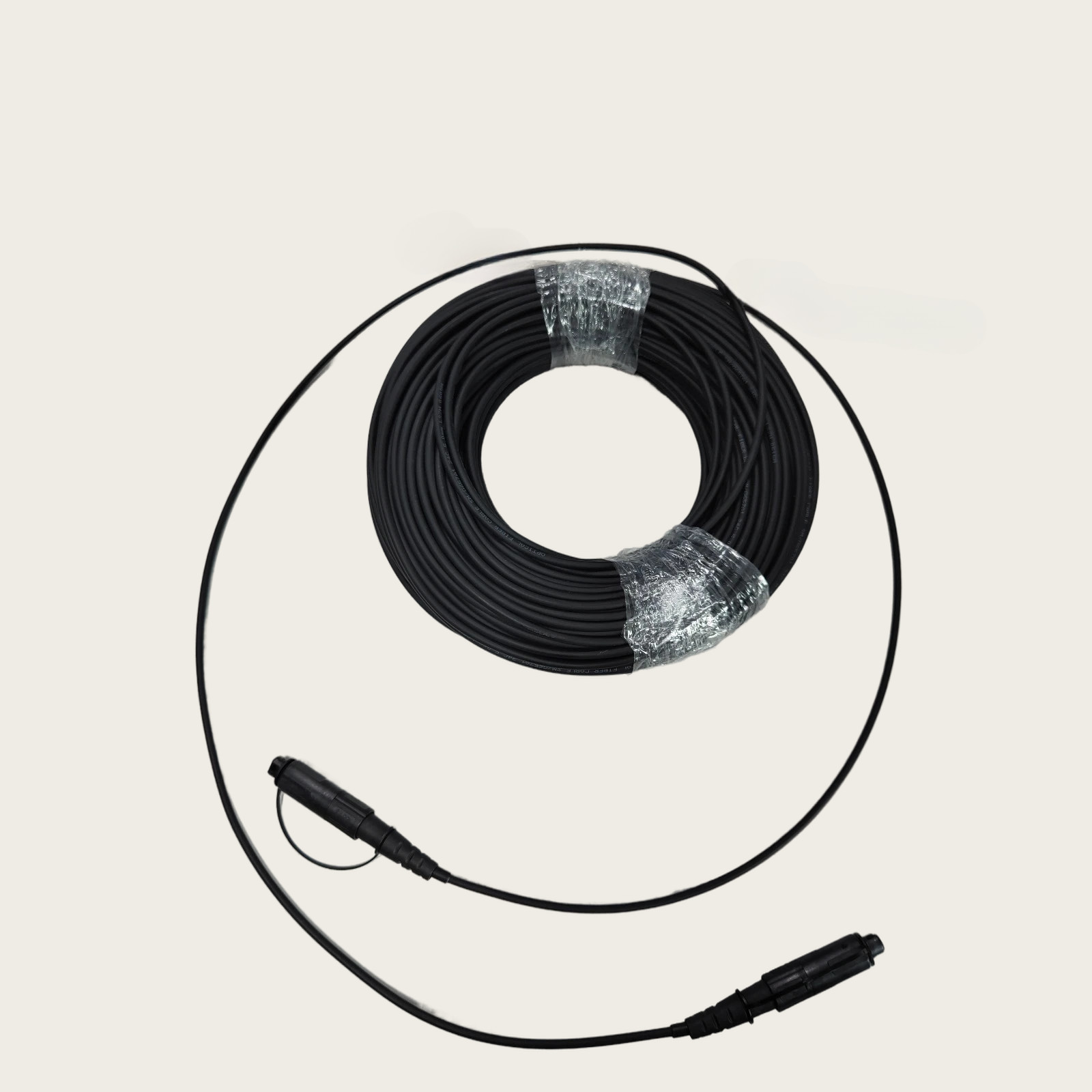

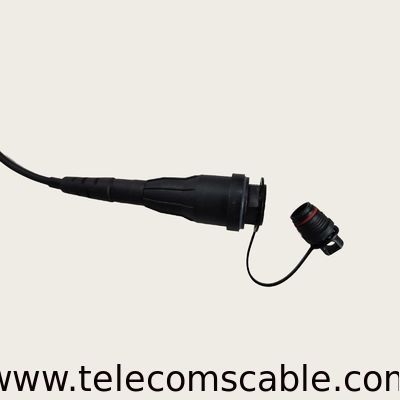

Waterproof MPO Trunk Cable with MPO Breakout Fiber Optic Cable 12/24 Core 3





Application

  • Data communication network
  • Optical System Access network
  • Storage area networking fiber channel
  • High density architectures
No. of cable
12
Fiber Model
G.657A1
Strength Member
Material
Aramid yarn
Tight buffer
Material
PVC

Diameter(±0.06)mm
0.90

Thickness(±0.03)mm
0.30
Outer Sheath
Material
TPU

Color
Black

Thickness(±0.1)mm
0.8
1.2
Cable Diameter(±0.2)mm
6.2
8.5
Cable Weight(±5)kg/km
35
68
Min. bending radius
Without Tension
10.0×Cable-φ

Under Maximum Tension
20.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60

Transport&Storage
-40~+70

Operation
-40~+70



Connector Specification

Connector Type
Performance Level
Pull strength
Standard
Elite
Connector
Mode
Endface
IL(dB)
RL(dB)
IL(dB)
RL(dB)
(N)
LC/SC/FC/ST
SM
PC
≤0.2
≥50
≤0.15
≥50
≥68N
UPC
≤0.2
≥55
≤0.15
≥55
APC
≤0.2
≥60
≤0.15
≥60
MM
PC
≤0.2
≥35
≤0.15
≥35
MPO/MTP
SM
APC
≤0.7
≥60
≤0.35
≥60
≥68N
MM
PC
≤0.5
≥20
≤0.35
≥20
MTRJ
SM
PC
≤0.5
≥50
/
/
≥68N
MM
PC
≤0.5
≥35
/
/
FAQ
Q1. Can I have a sample order for this product?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks based on order quantity.

Q3. Do you have any MOQ limit for sample order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for the product?
A: Firstly let us know your requirements or application.
B.Secondly We quote according to your requirements or our suggestions.
C.Thirdly customer confirms the samples and places deposit for formal order.
D.Fourthly We arrange the production.


Are you interested in Outdoor Waterproof MPO Trunk Cable with MPO Breakout Fiber Optic Cable 12/24 Core?

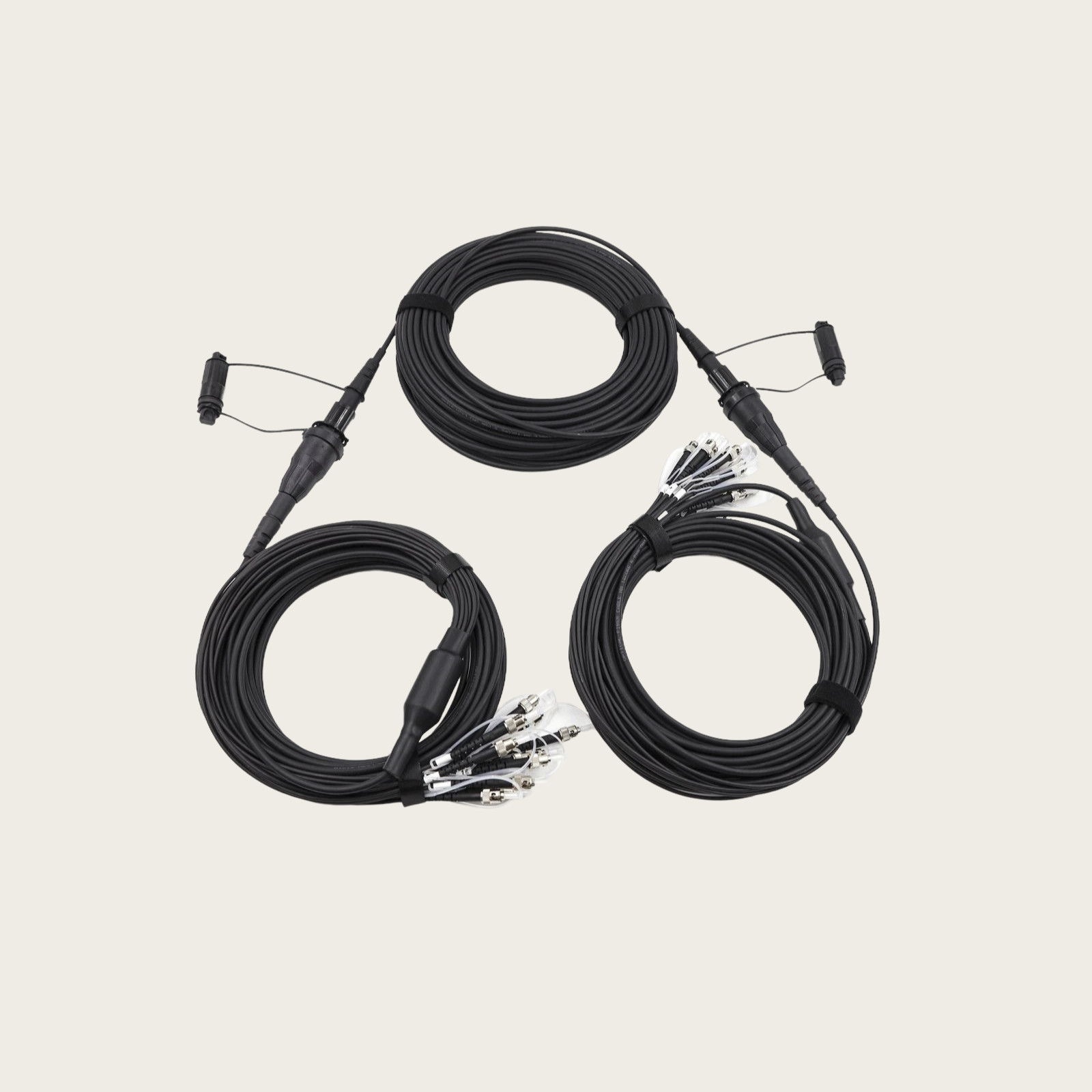

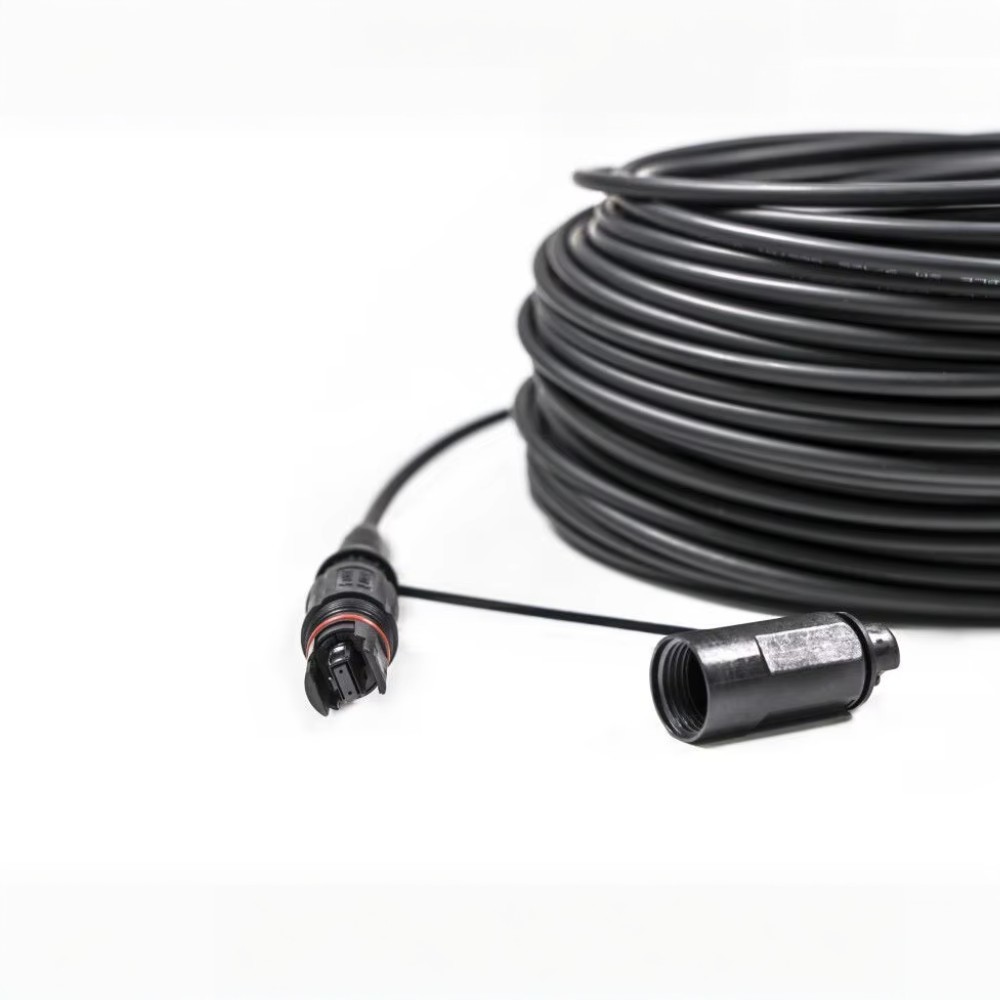

Waterproof MPO Trunk Cable with MPO Breakout Fiber Optic Cable 12/24 Core 4
